New (to me) M1A in a Sage EBR chassis

Yeah, that M14 video guy...
Picture of benny6

posted

quote:
Originally posted by rkentm:
quote:
Originally posted by benny6:

And while we're on the subject, I recommend the EBR RPS trigger. It gives you the proper angle and allows your finger to rest comfortably on the trigger for pistol-gripped rifles.

Tony.

Tony, installed the trigger and valve today. Really liking the adjustability on that trigger. Range day tomorrow and I can’t wait!

Great to hear! The SS RPS triggers are worth it, IMHO.

Tony.

Owner, TonyBen, LLC, Type-07 FFL
www.tonybenm14.com (Site under construction).
e-mail: tonyben@tonybenm14.com

Posts: 5575 | Location: Auburndale, FL | Registered: February 13, 2001

Ignored post by benny6 posted

rkentm

Admit nothing. Deny everything.
Make counter-accusations.
Picture of rkentm

posted

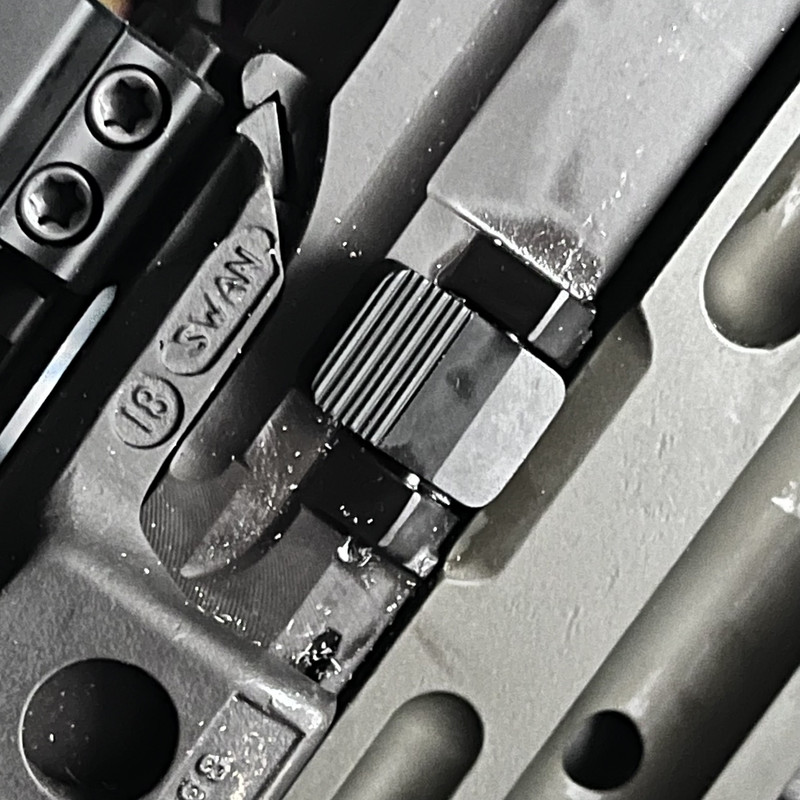

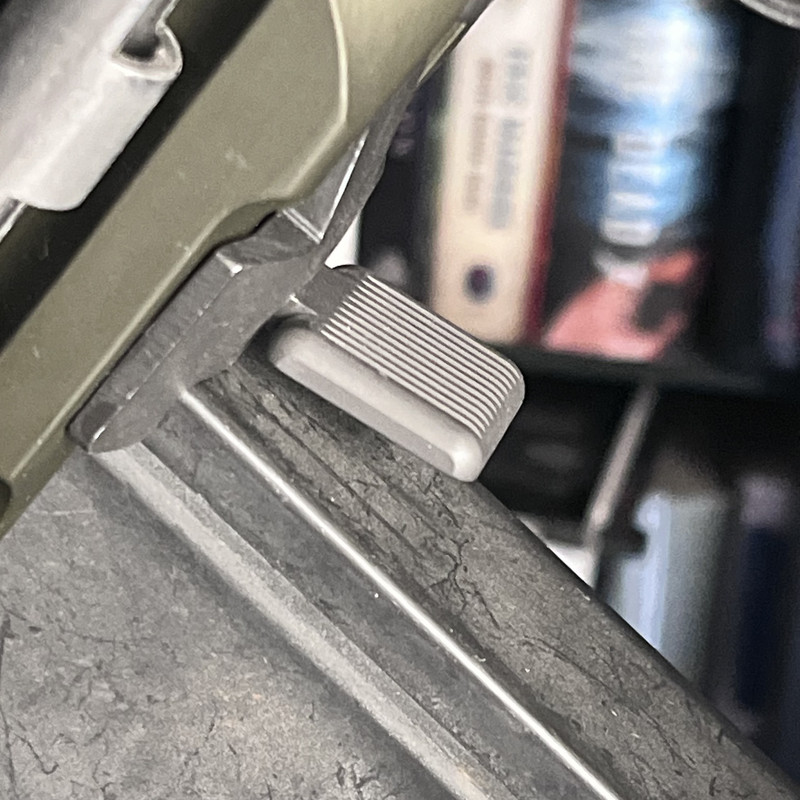

Just added a Sadlak oversized mag release and a Smith oversized bolt hold/release! Do I “need” them? No. Do I enjoy tinkering with my rifles? Absolutely!!

_________________________

"Ladies and Gentlemen - The Fit has hit the Shan!"

Posts: 614 | Location: Central Texas | Registered: September 25, 2003

Ignored post by rkentm posted

sigcrazy7

Member

posted

I had always wanted a M1A, but recently found a good deal on a James River M14 with a Bula receiver.

Question. There’s a lot of info in this thread for M1A stuff. Will those same parts/mods work equally well on my M14? IOW, is “M1A” being used generically, or are you referring specifically to the Springfield M1A?

_{Demand not that events should happen as you wish; but wish them to happen as they do happen, and you will go on well. -Epictetus}

Posts: 8292 | Location: Utah | Registered: December 18, 2008

Ignored post by sigcrazy7 posted

Yeah, that M14 video guy...
Picture of benny6

posted

quote:
Originally posted by sigcrazy7:
I had always wanted a M1A, but recently found a good deal on a James River M14 with a Bula receiver.

Question. There’s a lot of info in this thread for M1A stuff. Will those same parts/mods work equally well on my M14? IOW, is “M1A” being used generically, or are you referring specifically to the Springfield M1A?

M1A is the trademarked name for the Springfield Armory, Inc. For technical purposes, M1A and M14 can be used interchangeably.

Let me know if you have questions or issues with your Bula.

Tony.

Owner, TonyBen, LLC, Type-07 FFL
www.tonybenm14.com (Site under construction).
e-mail: tonyben@tonybenm14.com

Posts: 5575 | Location: Auburndale, FL | Registered: February 13, 2001

Ignored post by benny6 posted

Member

posted

Op, thanks for the close up of the Optic mount. I haven't een one of those before.

Tony a.k.a benny thanks for the post on the gas plug. Am I right in believing thats also how you deal with the pressure generated by M118LR and the like?

Posts: 4796 | Location: Where ever Uncle Sam Sends Me | Registered: March 05, 2007

Ignored post by CD228 posted

Member

posted

quote:
Originally posted by benny6:
quote:
Originally posted by sigcrazy7:
I had always wanted a M1A, but recently found a good deal on a James River M14 with a Bula receiver.

Question. There’s a lot of info in this thread for M1A stuff. Will those same parts/mods work equally well on my M14? IOW, is “M1A” being used generically, or are you referring specifically to the Springfield M1A?

M1A is the trademarked name for the Springfield Armory, Inc. For technical purposes, M1A and M14 can be used interchangeably.

Let me know if you have questions or issues with your Bula.

Tony.

That leads to an intrsting follow on question.

The M14 in military service had the ability to fire fully automatic. This feature was disable by removing the selector switch, but as far as I know, no changes were done to the internals. That said I'm not an M14 armorer, nor did I get a chance to disassemble one.

I'm assuming that the M1A rifles have had changes made to the design that prevent it from being able to fire full auto.

Is that a valid assumption? What changes were made?

Posts: 4796 | Location: Where ever Uncle Sam Sends Me | Registered: March 05, 2007

Ignored post by CD228 posted

rkentm

Admit nothing. Deny everything.
Make counter-accusations.
Picture of rkentm

posted

Happy to post any specific views if you like, so just LMK.

quote:
Originally posted by CD228:
Op, thanks for the close up of the Optic mount. I haven't seen one of those before.

_________________________

"Ladies and Gentlemen - The Fit has hit the Shan!"

Posts: 614 | Location: Central Texas | Registered: September 25, 2003

Ignored post by rkentm posted

Yeah, that M14 video guy...
Picture of benny6

posted

quote:
Originally posted by CD228:

That leads to an intrsting follow on question.

The M14 in military service had the ability to fire fully automatic. This feature was disable by removing the selector switch, but as far as I know, no changes were done to the internals. That said I'm not an M14 armorer, nor did I get a chance to disassemble one.

I'm assuming that the M1A rifles have had changes made to the design that prevent it from being able to fire full auto.

Is that a valid assumption? What changes were made?

Yes, there's a full auto lug on the right rear of the receiver that was removed. It housed the selector switch. The operating rod dismount slot was in the middle of the op-rod travel. That slot was eliminated and a dismount notch was moved to just below the rear sight windage knob.

There was also a groove under the front right of the receiver that kept the full auto connector rod in place which is also not present in civilian models.

Real M14 receiver...

Civilian M14 receiver

Tony.

Owner, TonyBen, LLC, Type-07 FFL
www.tonybenm14.com (Site under construction).
e-mail: tonyben@tonybenm14.com

Posts: 5575 | Location: Auburndale, FL | Registered: February 13, 2001

Ignored post by benny6 posted

Member

posted

quote:
Originally posted by rkentm:
Happy to post any specific views if you like, so just LMK.

quote:
Originally posted by CD228:
Op, thanks for the close up of the Optic mount. I haven't seen one of those before.

thank you very much for the offer I appreciate it.

Is the ARMS mount sturdier then a Springfield Armory Mount?

Posts: 4796 | Location: Where ever Uncle Sam Sends Me | Registered: March 05, 2007

Ignored post by CD228 posted

Member

posted

Benny, thanks for the breakdown on the difference between the M14 and the M1A recievers.

Posts: 4796 | Location: Where ever Uncle Sam Sends Me | Registered: March 05, 2007

Ignored post by CD228 posted

kkina

Lost

posted

That's a beauty. Question, why is the gas-tube so long and have two barrel clamps?

ACCU-STRUT FOR MINI-14
"First, Eyes."

Posts: 17131 | Location: SF Bay Area | Registered: December 11, 2003

Ignored post by kkina posted

rkentm

Admit nothing. Deny everything.
Make counter-accusations.
Picture of rkentm

posted

No idea, but I bet benny6 could answer.

quote:
Originally posted by kkina:
That's a beauty. Question, why is the gas-tube so long and have two barrel clamps?

_________________________

"Ladies and Gentlemen - The Fit has hit the Shan!"

Posts: 614 | Location: Central Texas | Registered: September 25, 2003

Ignored post by rkentm posted

Yeah, that M14 video guy...
Picture of benny6

posted

That's the gas cylinder. It is the same as any other M14. The only difference is that more of it is exposed with the SAGE chassis, although early chassis had a longer forearm which exposed less of the gas system.

Here's what's hidden beneath the forearm and handguard of a regular stock...

Just like an AR-15 front sight, it has a forward and rear band that slides around the barrel. All M14's have two bands on the gas cylinder.

Tony.

Owner, TonyBen, LLC, Type-07 FFL
www.tonybenm14.com (Site under construction).
e-mail: tonyben@tonybenm14.com

Posts: 5575 | Location: Auburndale, FL | Registered: February 13, 2001

Ignored post by benny6 posted

kkina

Lost

posted

OK, never knew that. Interesting. Thank you.

ACCU-STRUT FOR MINI-14
"First, Eyes."

Posts: 17131 | Location: SF Bay Area | Registered: December 11, 2003

Ignored post by kkina posted
