PSA - Check the strain screw on your S&W revolvers! Login/Join
Jack of All Trades,
Master of Nothing
Picture of 2000Z-71
posted
About 6 weeks ago tried out a new bear load, 49th State Cartridge Company 250gr XTreme Penetrators in .44 Magnum. They were 100% reliable in my Smith 329, but only 50% reliable in my 629 Mountain Gun. Even with a second strike the primers failed to ignite, but they would ignite on a 3rd strike from my 329. Frustrating in that my Mountain Gun was my woods carry revolver for years before getting my 329 and I never had an issue with it. Does not inspire confidence when your bear gun goes click instead of BOOM!

Friend of mine suggested checking the strain screw. So I pulled the grips and put 2 full turns on it. Out at the range today with a second batch of the same ammo and the gun was 100%. Wish I could say the same for my hand…




My daughter can deflate your daughter's soccer ball.

Posts: 12307 | Location: Eagle River, AK | Registered: September 12, 2006Reply With QuoteReport This Post
Good things, many devils
posted Hide Post
Definitely worth checking, loss of tension on the mainspring when you need it isn't great! I tend to apply a drop of purple Loctite 222 to all of my strain screws for a little extra insurance while still being easy to remove when needed.

Posts: 410 | Location: KS | Registered: August 04, 2004Reply With QuoteReport This Post
His diet consists of black
coffee, and sarcasm.
Picture of egregore
posted Hide Post
I have also had an extractor rod back out, despite its being left-hand thread to prevent this. This will bind the cylinder up.





"The Almighty, He put some livin' things on this earth so a man can eat." - Festus Haggen, Gunsmoke

Posts: 31600 | Location: Johnson City, TN | Registered: April 28, 2012Reply With QuoteReport This Post
E tan e epi tas
Picture of cslinger
posted Hide Post
Been there done that got the t-shirt for both. Smile. I didn’t even know what the hell the strain screw was when it happened to me many moons again Frown


Take Care, Shoot Safe,
Chris

Posts: 8650 | Location: On the water | Registered: July 25, 2002Reply With QuoteReport This Post
Member
Picture of Expert308
posted Hide Post
quote:
Originally posted by egregore:
I have also had an extractor rod back out, despite its being left-hand thread to prevent this. This will bind the cylinder up.

I had that happen on my 66-1 K-frame a while back.

Posts: 8005 | Location: Southern Idaho | Registered: February 12, 2007Reply With QuoteReport This Post
Member
posted Hide Post
OK, let's see the strain screw.

Posts: 1295 | Location: Northern Nevada | Registered: December 22, 2011Reply With QuoteReport This Post
Member
posted Hide Post
quote:
Originally posted by ACP1:
OK, let's see the strain screw.



It is the screw on the lower front of the grip frame ( typically. Concealed under the grip) that tensions the mainspring- present on K L N frames
It should be fully tightened down. People erroneously think it is an adjustment ( looser screw lightens trigger ) but that is not the case.

Posts: 3797 | Location: Finally free in AZ! | Registered: February 14, 2003Reply With QuoteReport This Post
semi-reformed sailor
Picture of MikeinNC
posted Hide Post
quote:
Originally posted by ACP1:
OK, let's see the strain screw.






“You may beat me, but you will never win.” sigmonkey-2020

“ in my opinion, anything that we can do to trigger a potential aneurysm in a leftist is a good thing and worth doing” nhtagmember 2025

Posts: 12309 | Location: Temple, Texas! | Registered: October 07, 2006Reply With QuoteReport This Post
Jack of All Trades,
Master of Nothing
Picture of 2000Z-71
posted Hide Post
quote:
Originally posted by ACP1:
OK, let's see the strain screw.

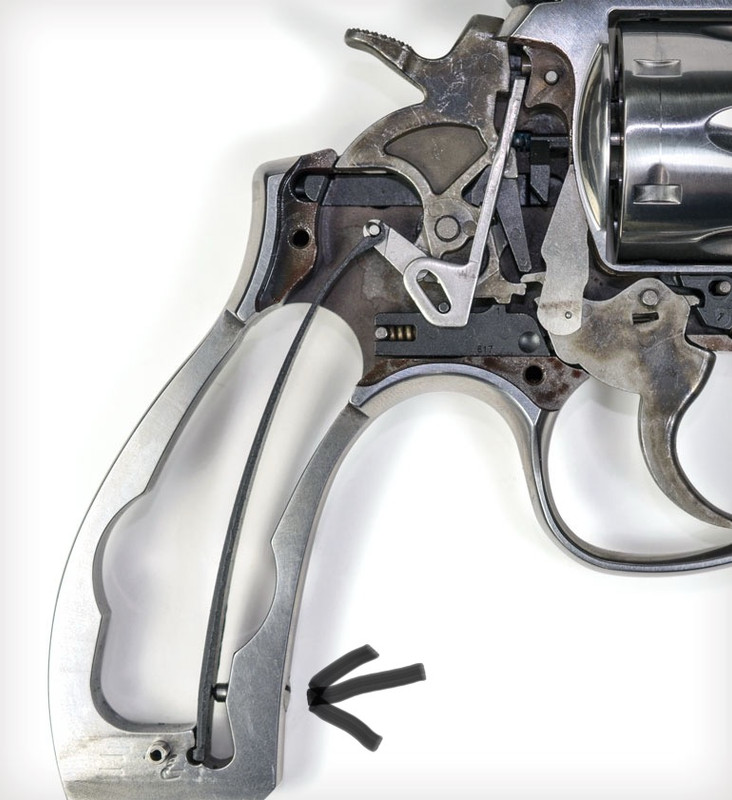

It's the screw at the bottom of the grip frame to keep tension on the leaf main spring. This is on my 610 Mountain Gun that I had issues with at the range today.





My daughter can deflate your daughter's soccer ball.

Posts: 12307 | Location: Eagle River, AK | Registered: September 12, 2006Reply With QuoteReport This Post
