My friend has the dreaded timing chain tick in his 4.0 DOHC.
And the only way to do it is to pull the engine.
I'll post photos of the engine snatch and the timing parts replacement...

SC, you do have some skills. Eagerly awaiting the additional pics.

By trade, I'm a motion automation programmer/engineer.
This is so different.
Working on cars is how my brother and I paid for college.

At least Darrin is a BIG help.

Ugh….
I don’t miss that kind of work at all! Done my fair share of engine and transmission replacements.

Tony

We just got the Frontier to pass emissions today.

The new manifold cats have been in for a couple days now. It had to complete the cycle before he could take it to get the emissions test done.

I was over there yesterday with my new DeWalt electric ratchet and I can tell you , I don't know how I have lived without one.

It made easy work with the manifolds on the Frontier.

I consider having to remove the engine to work on it for something a blessing anymore after spending over a decade doing rear geartrain failure work on Volvos in chassis.

I was kinda bummed I was doing an inframe overhaul on my current job, Cummins X15.
Not just new pistons and liners, liner height dropped enough to blow a gasket so I had to cut the counterbores too for a shim to bring them back up.
Much better to do that standing on the ground rather than one foot on the bumper and the other on a brake can.

PACCAR 2017 generation MX-13's are cam eaters.
Rear geartrain so the back of the engine has to be stripped.
Our shop pulls the powertrain to do that job, other shops do it in chassis, which would be a big fat nope from me.

I admire people who have the knowledge and skill to do repairs like this. Aside from saving money and knowing the job is done right, you can safely say yo can travel long distances or cross country with basic tools and repair kits. I followed a guy in youtube where he drive his old Ford diesel truck with a home made small house on the bed (which he built himself). On his way to Alaska, his engine pulley broke. He anticipated something like this may happen and was prepared. He have a brand new spare pulley in his repair kit. Crawled under the truck and fixed the problem on the
Side of the road.

Looking forward to updates and more pictures.

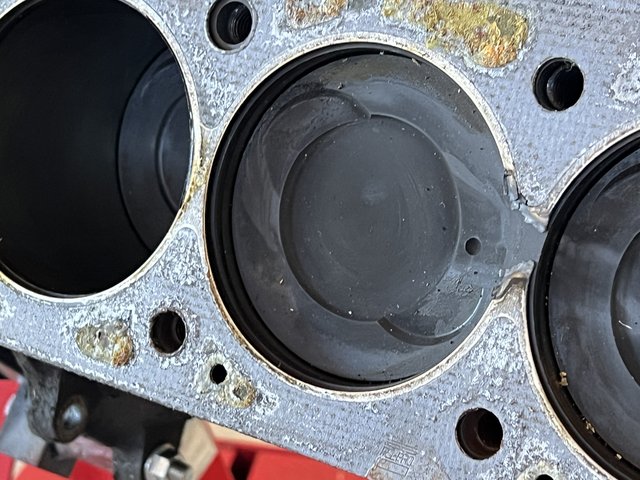

Hope you have better luck then I did on my Grandsons ranger. 98 2.5L. It started running really bad and… Blown head gasket, two cracked pistons, (between the ring groves).
Have most parts for an overhaul here…

But then the little 4 cyl had ~300,000 miles on it so…

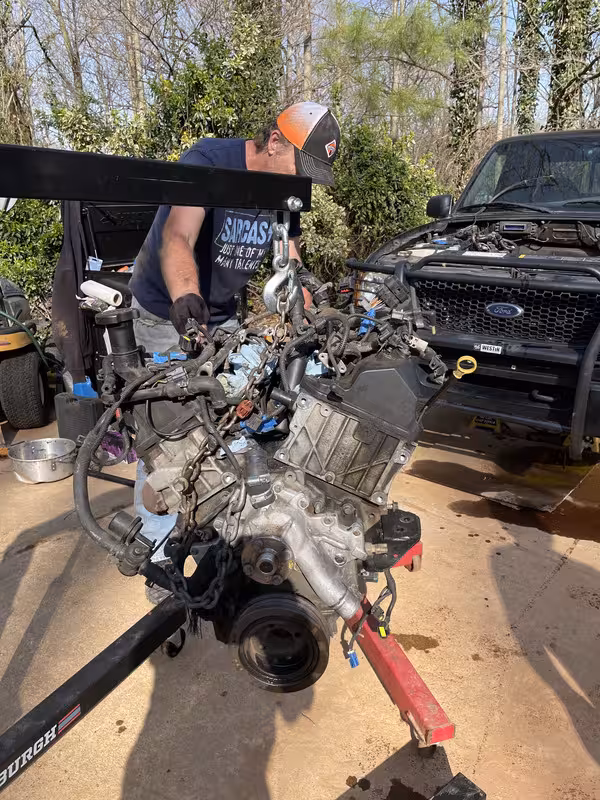

Pulled the engine with fork lift arms on the loader my JD 1025R.

And it's out!
Man this thing was a bugger!
Being 4X4 the drivers exhaust manifold had to come off to get to the starter.
The starter has to come out to get to the torque converter bolts..

Yes, its big job for a timing chain on those 4.0.
I had to repair an Explorer that the chain guides went bad. I still have cam tool kit for those 4.0.

The idea of putting a chain on back of the engine, no words. Seems the designers could have thought of a better idea.

Ì just changed a thermostat on a '15 camaro. The thermostat is on the back of the engine. Go figure.

Good luck.

.

That engine is one of Ford's worst.

I assume you have the cam timing tools. There are no timing marks, nor are the sprockets keyed. Also, one of the sprocket bolts is left-hand thread.

Yikes.

Anything else that can be preemptively replaced while it's out and there's free space to work under the hood?

quote:

Originally posted by Greymann:
Yes, its big job for a timing chain on those 4.0.
I had to repair an Explorer that the chain guides went bad. I still have cam tool kit for those 4.0.

The idea of putting a chain on back of the engine, no words. Seems the designers could have thought of a better idea.

Ì just changed a thermostat on a '15 camaro. The thermostat is on the back of the engine. Go figure.

I've got a few choice words for the engineers at Audi! Four Timing Chains on the back of the Engine...Kinda' the nightmare scenario!



The Audi B8 4.2 FSI V8

The only thing worse was an old Masarati I worked on.

quote:

Originally posted by flesheatingvirus:
Yikes.

Anything else that can be preemptively replaced while it's out and there's free space to work under the hood?

Oh yeah, he's replacing everything we can.

quote:

Originally posted by egregore:
That engine is one of Ford's worst.

I assume you have the cam timing tools. There are no timing marks, nor are the sprockets keyed. Also, one of the sprocket bolts is left-hand thread.

Yep, not my first rodeo with the 4.0 series. And 4.7s.

You have my admiration!

I’ll bet Tampon Tim Walsh couldn’t do that!

Congrats on getting it out and not mentioning any swear words.

Did the chains on a Dodge truck once it hit 200,000 miles.

Didn't take long to come to the conclusion it would be easier to remove the front end of the truck than take the engine out.

Now about that stuff going on at Audi...

Makes a ford 300 6 cylinder look like child’s play, don’t it?

Dad had a F150, bronco & my bros F150 all had the same engine and dad had a 300 on a hoist standing by. Guess those days are gone now.

Great job SC
