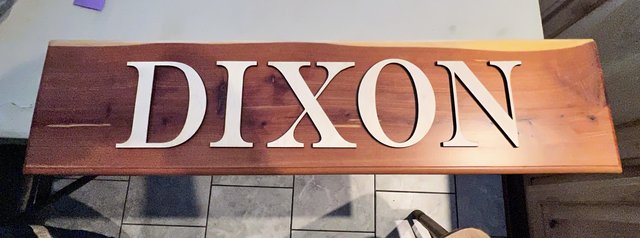

A Grandson made me a family name plaque for Christmas, said for me to hang in my man cave / den / TV room.

I thought I might hang it over the mantle. Easy enough...

...but then I had the idea to perhaps suspend it off the wall an inch or so and backlight it with LEDs to create an even but subtle glow around it.

Knowing little of LED strips I thought I'd ask the collective... I need specifics if possible please.

Battery powered would be a pretty big plus but not a deal breaker and a remote to turn it off and on desirable. It won't be "on" all that much, I expect when guest are over perhaps. If powered by mains I might even put it on a timer with a dimmer... There is power above the mantle near one end and a dark cord would be hardly noticeable if needed. Oh yea, selectable color would be nice

It is ~32 inches long and 8 inches high, a ~inch thick cedar board.

Think soft glow, consistent all around, not bright.

I think the light would need to be hidden/shielded from direct view form the sides by a border or trim inset behind the plaque... or perhaps a led strip could be routed into the board to hide it.

What y'all think?




Collecting dust.

Posts: 4238 | Location: Middle Tennessee | Registered: February 07, 2013Reply With QuoteReport This Post
A Grateful American
Picture of sigmonkey
posted Hide Post
Plexiglass sanded to provide a "frosted" finish, then mount LED strip to it. (these strips can be had with adjustable color, from a single color, slowly "shuffle" through colors with long gradient transition and other effects.)

The light will diffuse and you can either have the plexiglass extend beyond the edge, or have it cut smaller than the plaque and have the light softly glow.

Another thing would be to move the plaque closure or farther away from the wall surface and that will change the intensity or "soften" the reflected light.

I would have to do some searching, as it has been a while since I messed with them.




"the meaning of life, is to give life meaning" Ani Yehudi אני יהודי Le'olam lo shuv לעולם לא שוב!

Posts: 44867 | Location: Box 1663 Santa Fe, New Mexico | Registered: December 20, 2008Reply With QuoteReport This Post
Bookers Bourbon
and a good cigar
Picture of Johnny 3eagles
posted Hide Post
I have an LED light fixture that uses 6 AA batteries and a remote battery (2032) wall switch. It is approximately 16 inches long and 2 inches wide and 1.5 inches high. I mounted it with the LEDs facing down under a cabinet. I suspect that, mounted with the LEDs facing the wall behind the plaque it would serve your purpose. Purchased mine in the lighting department at Home Depot, don't remember the price, but it was not expensive. Batteries last a long time and are easy to replace.





If you're goin' through hell, keep on going.
Don't slow down. If you're scared don't show it.
You might get out before the devil even knows you're there.


NRA ENDOWMENT LIFE MEMBER

Posts: 7481 | Location: Arkansas  | Registered: November 06, 2010Reply With QuoteReport This Post
The Unmanned Writer
Picture of LS1 GTO
posted Hide Post
What the Monkey notes (the plexiglass can be done in such a way where it doesn't need to be screwed, or otherwise attached, to the wood) or, a neon tube loop attached to the backside with standoffs so the loop doesn't hit the wall.






Life moves pretty fast. If you don't stop and look around once in a while, you could miss it.



"If dogs don't go to Heaven, I want to go where they go" Will Rogers

The definition of the words we used, carry a meaning of their own...




Posts: 14299 | Location: It was Lat: 33.xxxx Lon: 44.xxxx now it's CA :( | Registered: March 22, 2008Reply With QuoteReport This Post
Member
Picture of mark60
posted Hide Post
I've used a bunch off Hitlights brand, available on Amazon. You can get color changing with a remote pretty cheap. You're able to set it for color changing or choose a color and they'll stick right on the back if you like.

Posts: 3636 | Location: God Awful New York | Registered: July 01, 2006Reply With QuoteReport This Post
"Member"
Picture of cas
posted Hide Post
LED strip / tape lights, like 65% of the dorm rooms in America at the moment.


_____________________________________________________
Sliced bread, the greatest thing since the 1911.


Posts: 21572 | Location: 18th & Fairfax  | Registered: May 17, 2003Reply With QuoteReport This Post
The cake is a lie!
Picture of Nismo
posted Hide Post
Pretty much any of the $30 RGB light strips will do the trick.
Just mount the strip in the back so that the LEDs are not in visible view, that way you get an even glow rather than seeing the light bloom of each led.

Posts: 7467 | Location: CA | Registered: April 08, 2004Reply With QuoteReport This Post
As Extraordinary
as Everyone Else
Picture of smlsig
posted Hide Post
Since you asked for specifics maybe something like this would work..

https://www.amazon.com/HIKENRI...la-401826811660&th=1

I have something similar on my truck camper awning and it works great.


------------------
Eddie

Our Founding Fathers were men who understood that the right thing is not necessarily the written thing. -kkina

Posts: 6590 | Location: In transit | Registered: February 19, 2013Reply With QuoteReport This Post
