Porch roof supports all the way to the ground VS. to the porch Login/Join
Raised Hands Surround Us
Three Nails To Protect Us
Picture of Black92LX
posted

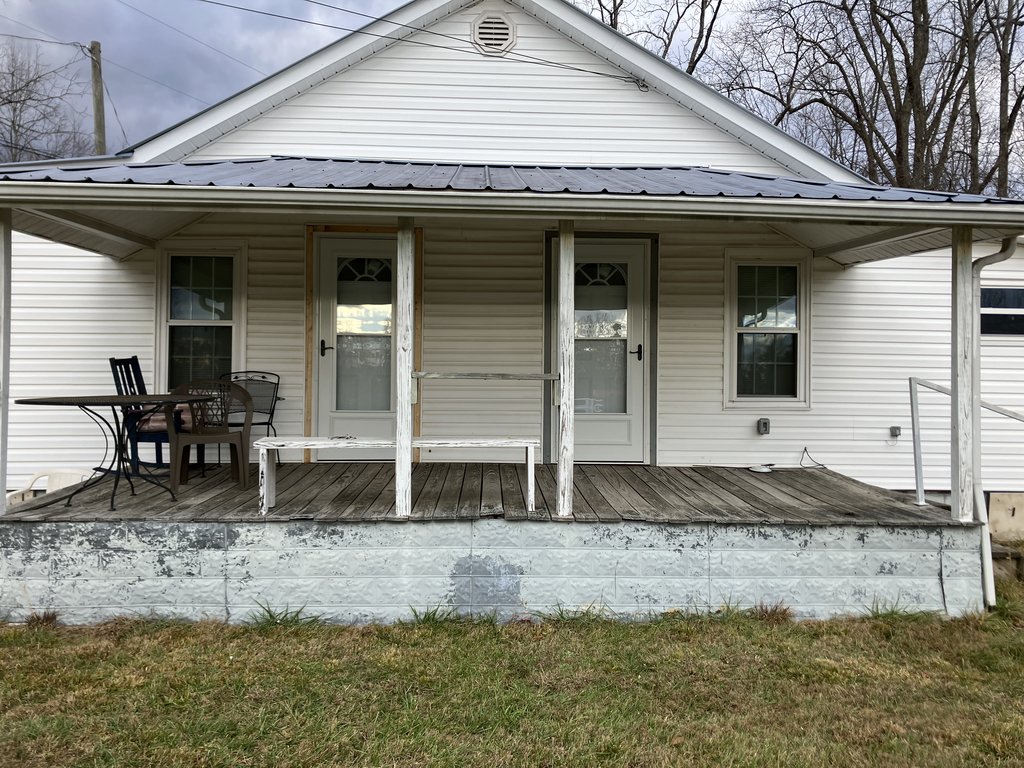

The roof of my porch is currently supported by 4 4x4s on the front edge of the porch.
Those 4x4s are about 7’ tall and sit directly on the porch. The front of my porch is starting to slope down at the front quite substantially and needs some repair.
So I am
Thinking I will use 6x6 posts and support the porch roof from the ground and not the porch. Then I should be able to jack the front of the deck up removing the slope.
Yes, I know that the porch is supposed to be sloped away from the house slightly for water drainage purposes it has sunk to much.

Or do I just jack to porch up and keep the roof supports to the porch?



————————————————
The world's not perfect, but it's not that bad.
If we got each other, and that's all we have.
I will be your brother, and I'll hold your hand.
You should know I'll be there for you!

Posts: 26780 | Registered: September 06, 2003Reply With QuoteReport This Post
Savor the limelight
posted Hide Post
The first thing I would fix whatever is causing the front of the porch to sink.

What I would do from there would depend on the condition of the 4x4s, the roof, the deck, and what’s supporting the deck.

Now that there’s a picture, I’d run that downspout out away from the porch.

Posts: 14382 | Location: SWFL | Registered: October 10, 2007Reply With QuoteReport This Post
Conservative in Nor Cal constantly swimming
up stream
Picture of PR64
posted Hide Post
Looks like the whole right side of the porch is sinking down.

I don’t think it’s a post issue necessarily.

As was mentioned above I would run the downspouts away from the porch.

Just an opinion from the picture.


-----------------------------------
Get your guns b4 the Dems take them away
Sig P-229
Sig P-220 Combat

Posts: 3952 | Location: Nor Cal | Registered: January 25, 2011Reply With QuoteReport This Post
Leftists, what more
needs to be said?
posted Hide Post
I agree, get that water runoff under control first. Or it won’t really matter if the uprights are bottomed on the brick or the ground.

Posts: 2717 | Location: Illinois  | Registered: July 14, 2010Reply With QuoteReport This Post
Member
Picture of Captain Morgan
posted Hide Post
Its been my experience that most porch footing are not dug out and poured to the correct depth or width.
Whats code for the depth in your area?



Let all Men know thee, but no man know thee thoroughly: Men freely ford that see the shallows.
Benjamin Franklin

Posts: 4172 | Location: Sparta, NJ USA | Registered: August 16, 2002Reply With QuoteReport This Post
As Extraordinary
as Everyone Else
Picture of smlsig
posted Hide Post
Agree with the hive.

As a retired GC the first thing I’d do is remove the metal skirting to get a better idea of what is behind there. Chances are the porch is not supported with concrete footers and that would be the first order of business. You will probably have to temporarily support the porch/roof a foot or so away from where you’ll dig the hole.

If possible then replace the post that supports the porch with a treated 6x6. Do this for all the supports adjusting as necessary to get a level porch.

The porch only needs to have a slight slope IF there is no gap between the decking boards which doesn’t appear to be the case.


------------------
Eddie

Our Founding Fathers were men who understood that the right thing is not necessarily the written thing. -kkina

Posts: 7256 | Location: In transit | Registered: February 19, 2013Reply With QuoteReport This Post
Staring back
from the abyss
Picture of Gustofer
posted Hide Post
My posts are anchored to the ground - 3 feet down (frost line).


________________________________________________________
It is long past time for a Convention of States. The Founding Fathers gave us this tool to fix an out of control government and we need to use it.

Posts: 22712 | Location: Montana | Registered: November 01, 2010Reply With QuoteReport This Post
The Unmanned Writer
Picture of LS1 GTO
posted Hide Post
How much are you willing to invest into the house / porch and, how many years do you want it to last?

Those answers will help guide you to what needs to be done. Wink






Life moves pretty fast. If you don't stop and look around once in a while, you could miss it.



"If dogs don't go to Heaven, I want to go where they go" Will Rogers

The definition of the words we used, carry a meaning of their own...




Posts: 14926 | Location: It was CA., Now it's "FREEEEEEDOM!!" (TN) | Registered: March 22, 2008Reply With QuoteReport This Post
Thank you
Very little
Picture of HRK
posted Hide Post
quote:
Originally posted by smlsig:
Agree with the hive.

As a retired GC the first thing I’d do is remove the metal skirting to get a better idea of what is behind there. Chances are the porch is not supported with concrete footers and that would be the first order of business. You will probably have to temporarily support the porch/roof a foot or so away from where you’ll dig the hole.

If possible then replace the post that supports the porch with a treated 6x6. Do this for all the supports adjusting as necessary to get a level porch.

The porch only needs to have a slight slope IF there is no gap between the decking boards which doesn’t appear to be the case.


Sounds like a smart plan, you need to get to the bottom of the supports under the porch and level it there, the posts don't look to be the problem.

Posts: 27666 | Location: Gunshine State | Registered: November 07, 2008Reply With QuoteReport This Post
Raised Hands Surround Us
Three Nails To Protect Us
Picture of Black92LX
posted Hide Post
Good catch on the downspouts I’ll run those out for sure.
So the front corners of the deck are on maybe in concrete. You can kind of see the concrete if you zoom in. I am not sure if there is any concrete footing along the front but I am guessing not.
I do need to pull that underpinning to get a better idea of what I am working with.


————————————————
The world's not perfect, but it's not that bad.
If we got each other, and that's all we have.
I will be your brother, and I'll hold your hand.
You should know I'll be there for you!

Posts: 26780 | Registered: September 06, 2003Reply With QuoteReport This Post
